🥖 Disclaimer 🥖

• I'm French (which means my english is terrible);
• My daily job is not related to embedded computing or electronics (even if I work in IT);
• => This talk is about a n00b sharing a Sunday project.

A bit of history...

• HO-scale trains from the late '70s
• ... They slept for 25yrs in the attic...
• ... Before being powered back in 2005.


• We made some improvements since 2011:
• Tripled the size, with a new train station;
• New structures, new buildings (with lights!);
• And a big electrical update.


• => 3 generations played with them!

HO train 101

• Toy from the 19th century (1:87 scale)
• Became popular in the '50s (thanks to plastic manufacturing)
• Still produced (but VERY expensive)



• 14V DC supplied through the rails;
• One lamp and one motor per train;
• That's it! Fully analog control.

(But don't look under the table)

We're looking for a solution

• And here comes DCC!
• To summarize it real quick, we send information to our trains using the power coming through the rails
• => With this, we can handle up to 8 trains going at different speeds and in different directions!

That's awesome - we need this!

But...

• When you start using DCC, you must change EVERYTHING!
• You need a specific power delivery mechanism ;
• You need to change the train motor ;
• And add a control board inside.
• Total cost? Nearly €2,900 (for our 20 trains)

Well... Forget it, analog is good enough anyway.

And of course, the market only offers proprietary solutions.

Time flies...

... Until 2024.

"TinyGo, petit mais costaud ! 💪" (Thierry Chantier @titimoby)

We disassemble one of our trains

• There's just enough room for a Raspberry Pi Pico (and it runs TinyGo)!
• 21 * 51 mm
• 264kB RAM ; 2 core @133MHz ; 2MB flash memory 😎
• We order five of them (W variant)

Our first victim (BB9201)

14V => 5V

• Our train are powered by 14V DC, but our Raspberry can only handle 5V (without smoke, sparkles and fire).
• => We add a step-down converter

Motor control

• To control the train's motor, we add a PWM module
• => Let's buy an Adafruit DRV8871

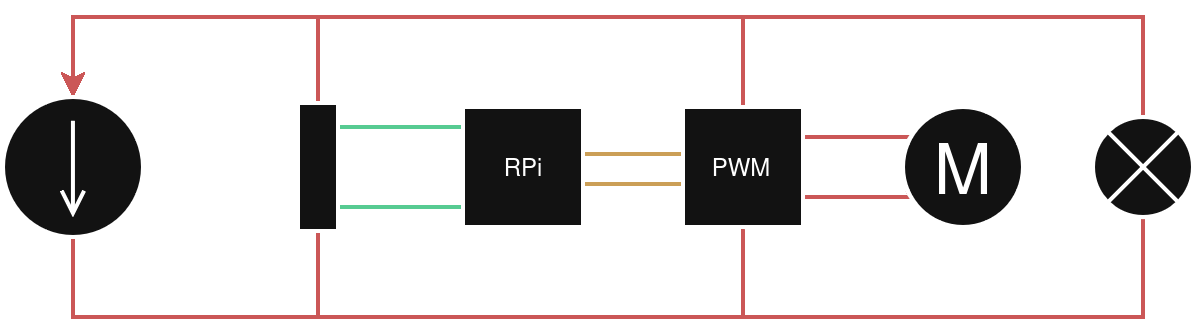

And we wire everything

• 14V DC
• 5V DC
• PWM signal

And it works...

• ... Until we accidentally reverse the direction of the train.
• The converter and the RPi start to smell funny...

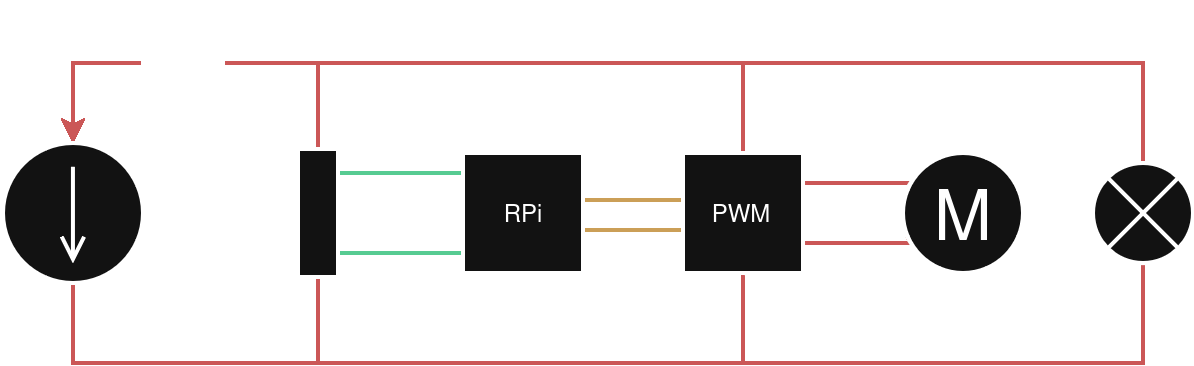

• Let's add a Schottky diode 😬

Stability

• When we test it in real condition, we realize the electrical network is not stable.
• Electricity has to go through a lot of parts: rails, wheels, etc.
• => The motor can handle these micro-cuts...
• ... But the RPi does not like it at all!

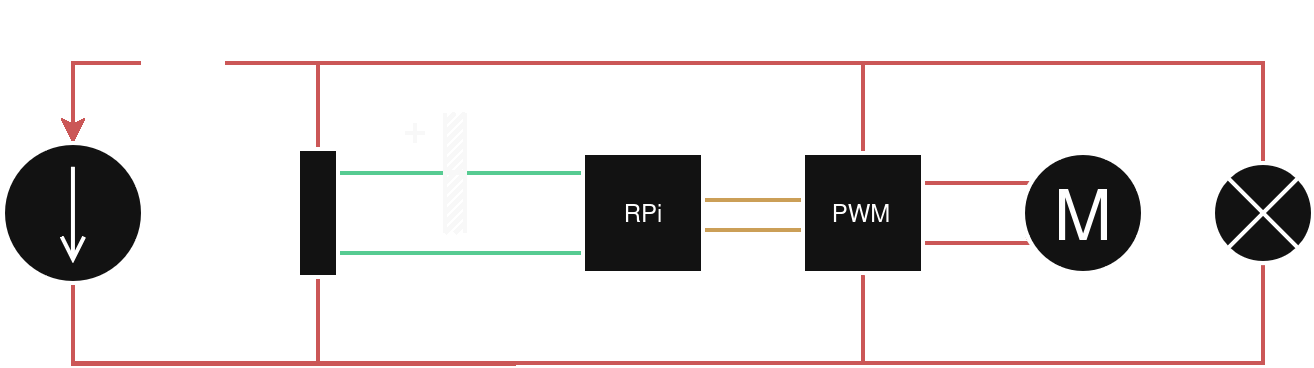

• We add a capacitor to smooth out these micro-cuts.

And now, it works!

But it doesn't fit.

Let's minify it

• We design a custom PCB shield for our needs

4 weeks later...

And it really works!

• We push a very simple piece of code on the RPi (speed at 100% and lights on)

Now, it's time to code!

TinyGo

What does our Raspberry Pi have to handle?

• Turn light on/off;
• The motor (through PWM);
• Communicate with the world;
• And that's good enough for a first version.

Good ol' webserver? Nope.

• My first idea was to expose a REST API on each train, and communicate over Wi-Fi
• That was a dumb idea (but I tested it anyway)
• There's no native Wi-Fi on RPi Pico with TinyGo;
• Wi-Fi requires a lot of power, which makes my capacitor insufficient;
• Wi-Fi is SLOW (> 200ms per command);
• => It was the idea of someone who had never done onboard computing.

So, I switched to Bluetooth BLE

A variant of the Bluetooth protocol, designed for IoT.

• Each client exposes a GATT server ;
• This server exposes services ;
• Each service has characteristics ;
• And we can read/write on each characteristic.


• When a server connects to a client, the client stops advertising and keeps the connection open.
• => Latency is negligible! < 1ms 🎉


• And a server can connect to multiple clients (depending on the Bluetooth antenna(s)).
• Bluetooth BLE is used by your smart[watch|glass|ring|...]

Client (TinyGo)

(native tinygo.org/x/bluetooth)

  [...]
  adapter.AddService(&bluetooth.Service{
		UUID: serviceUUID,
		Characteristics: []bluetooth.CharacteristicConfig{
			{
				UUID:  speedCharacteristicUUID,
				Flags: basicFlags,
				WriteEvent: func(client bluetooth.Connection, offset int, value []byte) {
					// Code to update the motor here
					// (In fact, we send information in a channel and handle it after to avoid thread-lock)
				},
			},
		},
	})

	adv.Start();
  [...]


Server (Go)

(using github.com/go-ble/ble)

  // Detect
  devices, _ := ble.Find(ctx, false, func(a ble.Advertisement) bool {
		return strings.HasPrefix(a.LocalName(), "Trainberry::")
  })

  // Connect
  for _, k := range devices {
    cln, err := ble.Connect(ctx, func(a ble.Advertisement) bool {
			return a.LocalName() == k.LocalName()
    })

    //Send info
    cln.WriteCharacteristic(&ble.Characteristic{ValueHandle: 16}, data, true)
  }


Server + Frontend

• The server regularly scans for nearby Bluetooth devices, and connects to any client named Trainberry::XXXX (#safetyFirst)
• The server exposes a WebSocket for our Frontend (a simple SPA using Svelte)
• This avoids nearly all the TCP/IP latency
• (and allows us to have sync between multiple clients)

BLE is the way

• Aside from latency, removing Wi-Fi means:
• We do not need to have a dedicated router for this;
• We do not have to handle manually a TCP/IP stack on client;
• We do not have to flash our clients with secrets (SSID, router name, etc).


• => Our code is cleaner than before! Client is < 200 lines and starts in less than a second!

Whoops, my train became a zombie!

• When the train loses power for more than 25s, it becomes a zombie
• We can't reach it anymore, but when power is restored, it goes full throttle!
• When this happens, we have to reboot it - that's the purpose of the Watchdog.
• Using an internal clock, the board reboots after 8s without a signal.

Watchdog

• We add a "still alive" GATT service, polled every 5s by the server
• When we receive a message, we update Watchdog to reset the counter

func main() {
  // Activate the Watchdog
  machine.Watchdog.Start()

  // [...]

  // That's the chan we talked about earlier!
  for {
    event := <-constants.EventChannel
      switch event.Operation {
        case constants.StillAlive:
          machine.Watchdog.Update()
          break
        // [...]
    }
  }
}

And... It works!

Let's minify even more!

Here comes the Jouef 8525 - "La Draisine" 🥖

Jouef 8525

• Available size inside: 21mm * 42mm * 12mm (l/L/H)
• Our actual setup: 21mm * 51mm * 20mm 🫠 (l/L/H)

Seeed Studio

• Well-known for their XIAO series (17.8 * 21mm)
• Multiple variants (ESP32, RP2040, nRF52480, etc)
• Unfortunately, RP2040 version does not have wireless connectivity...
• ... But nRF52840 does! And... The board is supported by TinyGo 🎉!

Minify everything!

14V => 5V: Pololu 5V@500mA

22mm * 17mm

=>

7.6mm * 11.4mm

Minify everything!

PWM module: TA6586

24mm * 20mm

=>

9mm * 6mm

We're gonna build a board (again) 🎶

15 days later...

AND IT WORKS!

What's next?

• Minifying is done; our code is stable and fast, let the fun begin!
• Bridge rectifier to avoid train not powering up because of polarity;
• Automated rail station announcement;
• Add sound to the trains ("choo choo"!);
• Automated stop at rail station using NFC;
• Real-time cartography;
• Onboard camera;
• Use TinyGo to control turning points;
• => I have A LOT of ideas for 2026 😁
• And of course, in open-source AND open-hardware. ❤️

Thank you!
